Cloudcrete, Fabrication

This is a record, for now, of our step by step process to make these latex kites!

1: Template printed from from Rhino 3-d model.

2: Template used to cut latex form
3: Edges cleaned with solvent

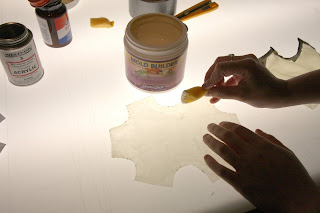

4.1: Edges adhered with either Liquid Latex


4.2: Or Edges adhered with Rubber Cement

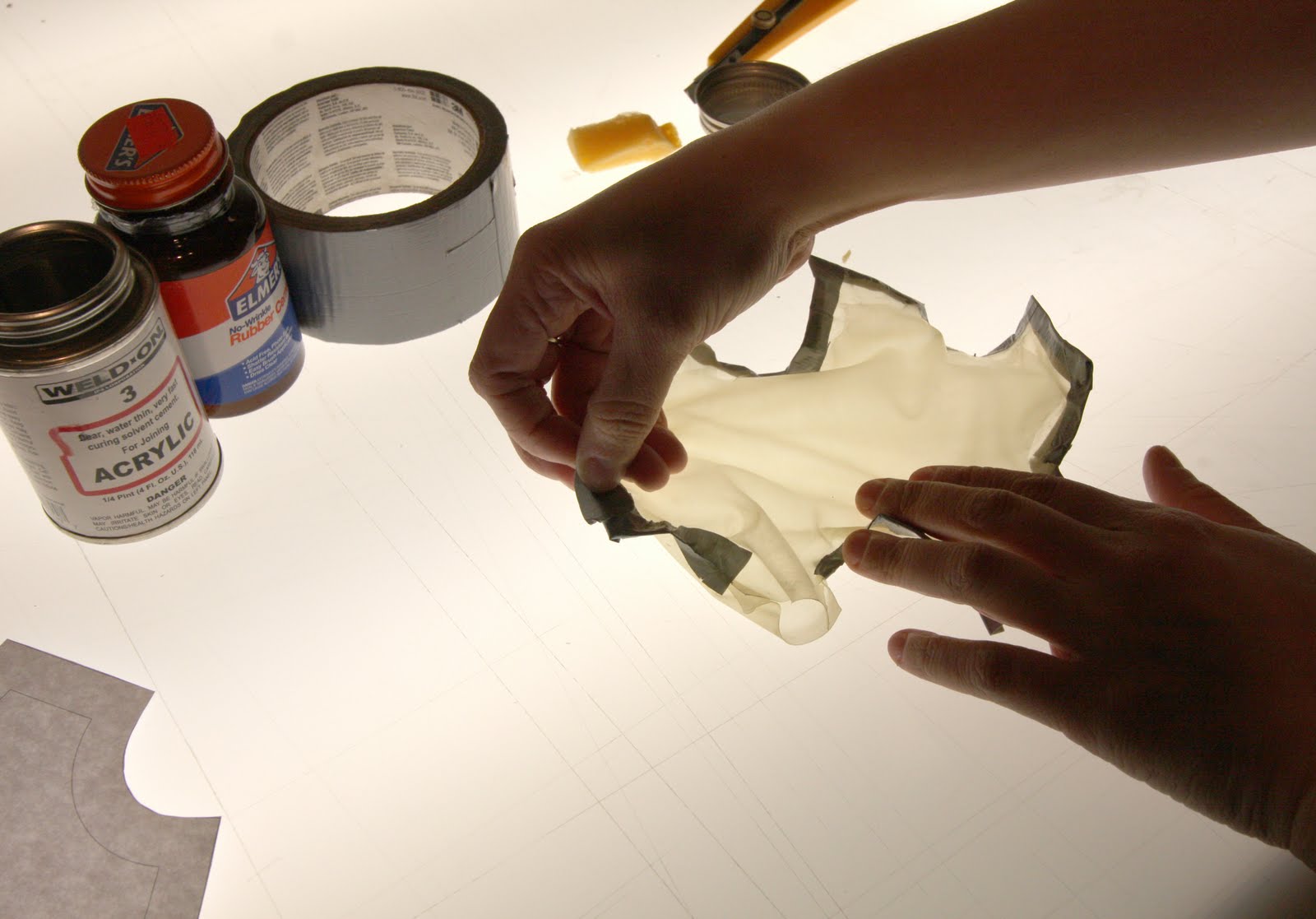

5: Once edges have dried seal with duct tape ( temporary solution until we get the sealed joint that we can trust)
first edge


all edges

gate to fill with concrete

All of the Materials Needed and the three new prototypes

Checking for Holes!


No holes here!

Sunday, April 4, 2010

Cloudcrete, Test Day 1

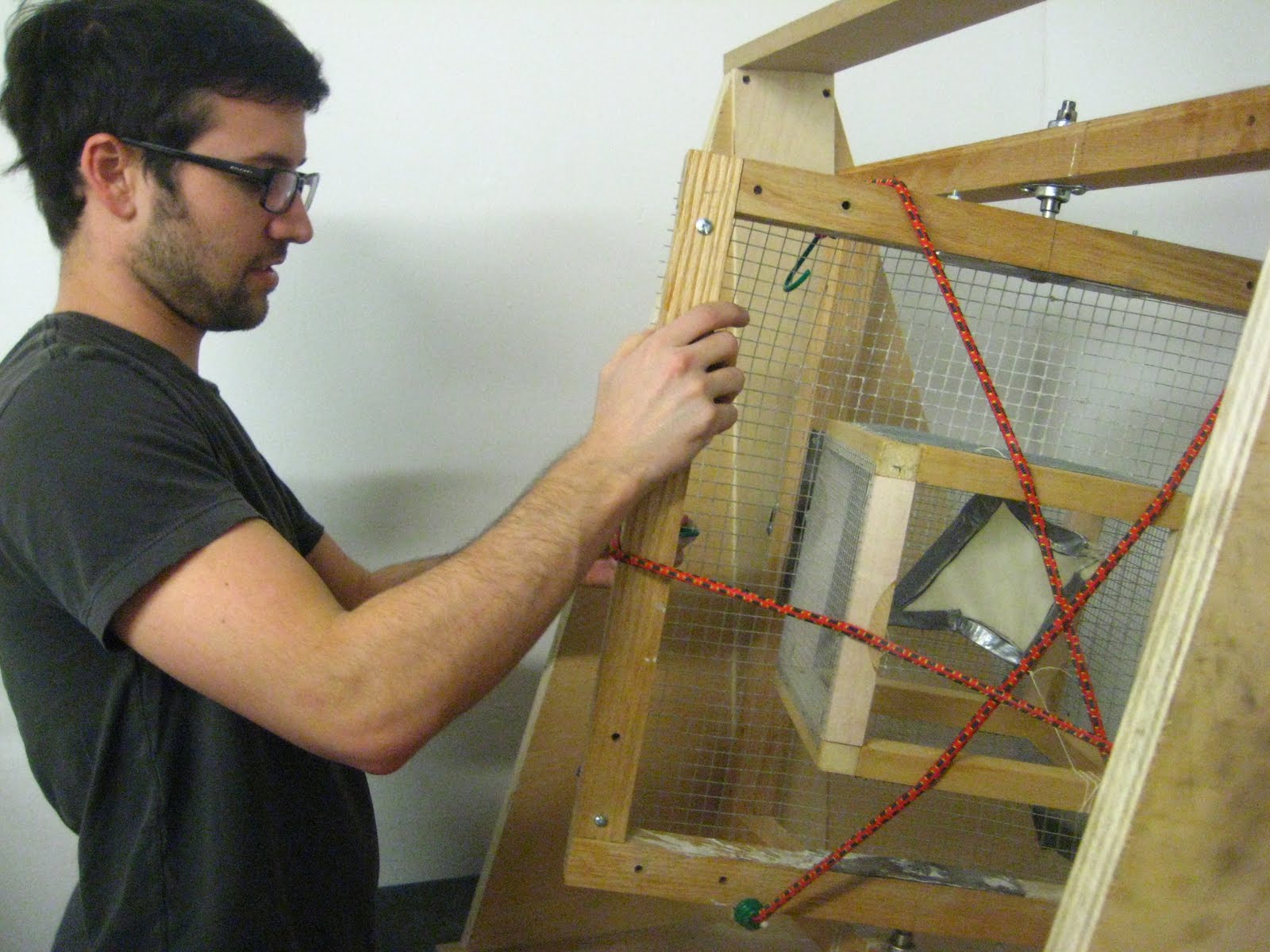

Cloudcrete is a rotational molded series of whimsical hollow forms that feel as light as a cloud! We are working on perfecting the right consistency of the mix, methods of sealing the latex formwork, and the calibration of the thinness of the rockite in a shell. These initial tests included embedding connections in the concrete to be able to string or fit pieces together (grommets and hollow tubes) and adding a fine sand as aggregate to the mixture.

Test 1: Small kite with hollow tube.



Test 2: Three-legged amoeba with grommet. The rockite was able to get so thin around the grommet that light is able to show through.



Test 3: Larger kite with hollow tube and green sand aggregate. The volume of concrete was not enough for the shell to stay together, however broken open, one can see the light effects of the thin shell and the sand.

Friday, March 26, 2010

Study 2: Cavernous Condition 4th Attempt (K Malishewsky)


Example of mold but with less balloons. Still trying to create more void and cleaner openings. I would like to try and start creating the inverse of what is solid vs void

Study 3: Shells 3rd Attempt (K Malishewsky)
